M290 HPHT Consistometer

  • Safely allows the operator to run tests longer than 12 hours
  • Wide LCD touchscreen
  • Linux-based OS with new User Interface for a more userfriendly atmosphere
  • Can be remotely operated using FannOne Software (our latest software development)
Contact Us: 098 2346742

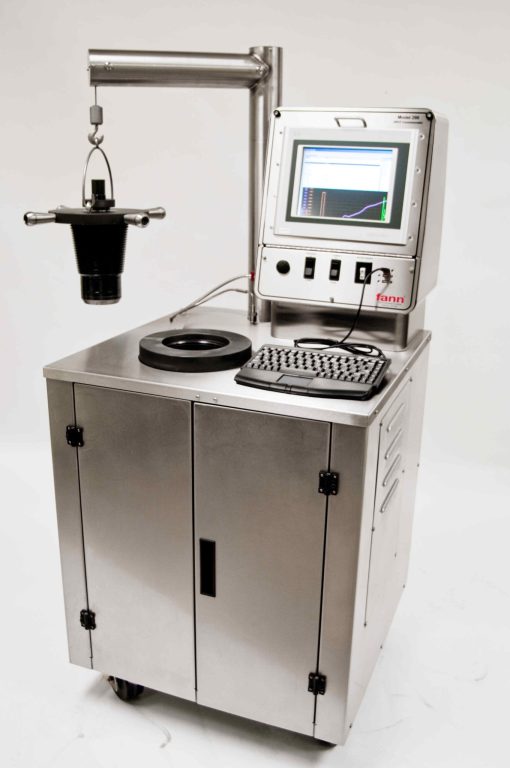

The Model 290 High-Pressure High-Temperature (HPHT) Consistometer is used to evaluate the consistency or pumpability of cement slurries. Operators can determine the maximum available pumping time of cement slurry before it reaches a non-pumpable consistency before setting.

The Model 290 HPHT Consistometer measures the thickening time of cement slurries under simulated downhole pressure and temperature conditions. Its maximum operating conditions are 400degF (204degC) and 30,000 psi (207 MPa). The thickening time of cement slurry is a good indicator of how long the slurry will remain pumpable. Thickening time is the time required for stirred cement slurry to reach a consistency of 100 Bearden units (Bc). The Bearden unit of consistency (Bc) is a dimensionless quantity from 0-100 units. The Bc number corresponds to the torque required to deflect an electrical potentiometer.
