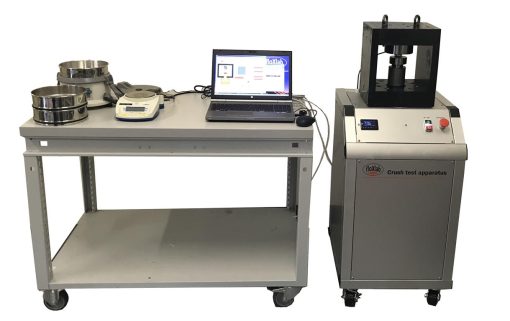

The PCT apparatus conducts proppant crush-resistance experiments. The amount of proppant crushed at a specific closure stress is determined in accordance to the test practices of the ISO 13503-2 standard. The device is capable of generating pressures up to 20,000 psi when used with a 50 mm (2 in) diameter piston. Piston displacement is achieved at a controlled, constant rate up to 2,000 psi per minute. The system mainly comprises a servo-controlled load frame and a cylindrical proppant cell. Applied load is constantly monitored and fed back into the controller to adjust crosshead motion and maintain the desired loading rate.
Specifications
| Standard | ISO 13503-2, API RP56 / 58 /60 |
|---|---|
| Crush pressure | up to 20,000 psi |
| Cell inside diameter | 2-inches (50.8 mm) |
| Cell outside diameter | 3.5-inches (89 mm) |
| Piston height | 3.5-inches (89 mm) |
| Wetted parts | Stainless steel |
